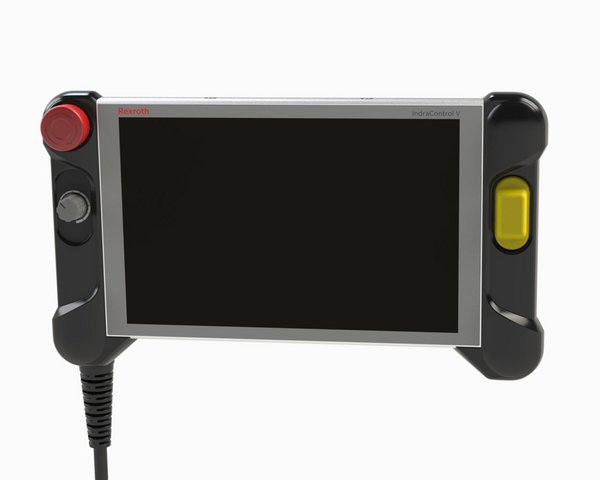

Produktbeschreibung: The VH 21

• A mobile, wired control device for process-proximate operation and monitoring
• Features a touchscreen with a resolution of 1280 x 800 pixels
• Integrated 3-stage enable switch and dual-circuit emergency stop for maximum safety
• Serves as a platform for a visualization system
• Equipped with an NVIDIA© Tegra 2 processor and connected to the control system via Ethernet

Technical Data

• Operation: Capacitive multitouch screen
• Display: 10.1-inch, 1280 x 800 pixels
• Processor: ARM Cortex™-A9
• Operating System: WEC7
• Housing: IP54
• Power Supply: 24 V
• Switches: Emergency stop, 1× enable switch, 16-stage override switch
• Interfaces: USB (OTG), Ethernet (17-pin connector)
• Certifications: CE, UL
